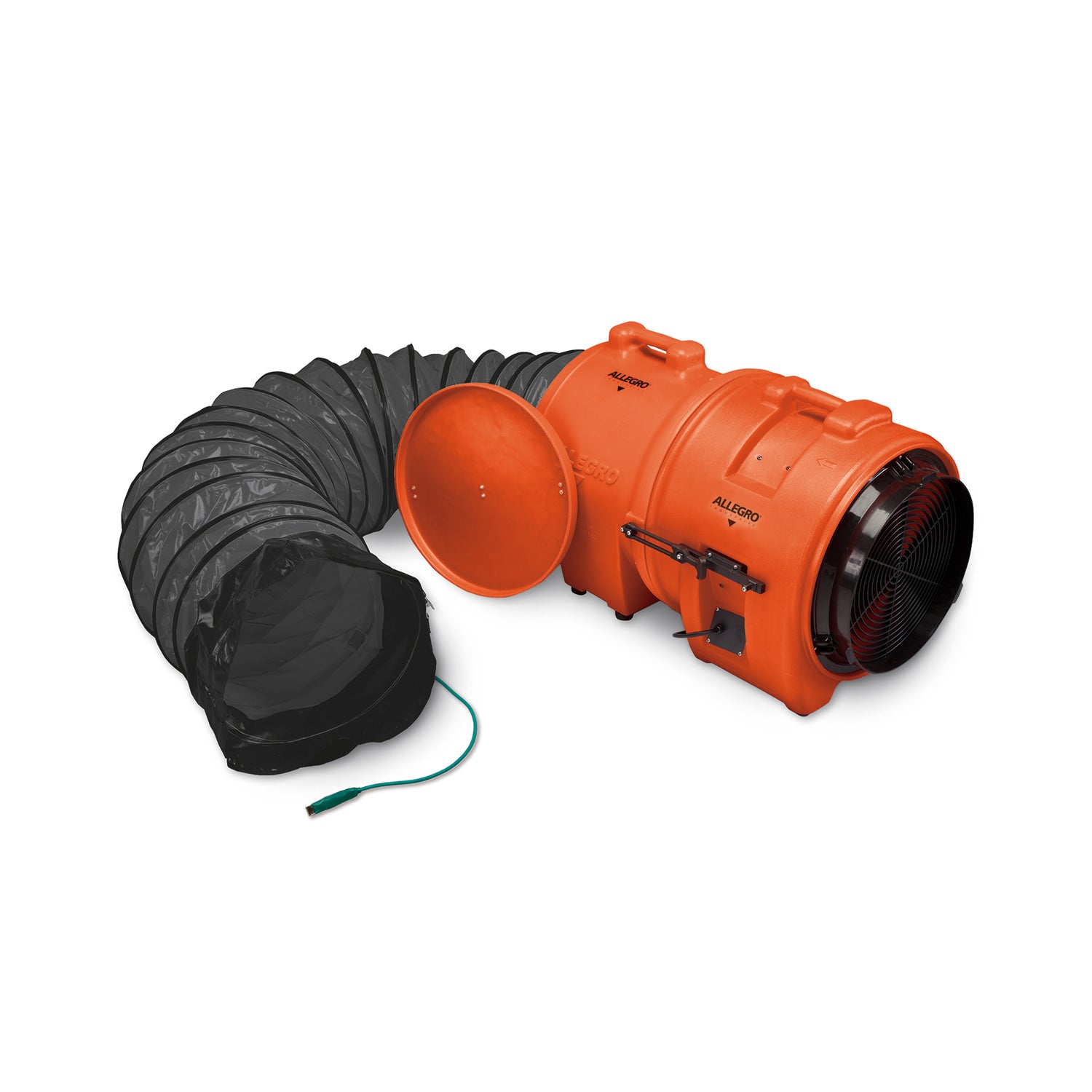

16" Axial Explosion-Proof (EX) Plastic Blower w/ Canister & 15’ Statically Conductive Ducting, 78 lbs. (9558-15)

This electric, explosion-proof blower is ideally suited for large confined spaces in statically conductive environments. Its single phase motor includes a NEMA rated 115V plug for use with explosion-proof socket (sold separately). The bottom enclosure ensures safe and convenient storage of electrical components. The quick-connect clipping system allows workers to attach canister, tools-free, to input side for powerful extraction or output side for ventilation. Meets Class I, Divisions 1 and 2, Groups C and D and Class II, Divisions 1 and 2, Groups F and G Hazardous Location Requirements. NOTE: Explosion-proof blowers require an explosion-proof socket.

3/4 HP
Available with 15’ (4.57 m) or 25’ (7.62 m) of statically conductive ducting and storage canister
Polyethylene housing and canister assembly
Lightweight, corrosion-, UV- and chemical-resistant
Bottom enclosure to protect electrical components
Carry handle molded into housing
Super quiet
"safety orange" color
Can ventilate or exhaust
Glass reinforced polypropylene (PPG) three-blade fan with aluminum hub
Meets Class I, Divisions 1 and 2, Groups C and D and Class II, Divisions 1 and 2, Groups F and G Hazardous Location Requirements.
Certified to CSA Standard C22.2 No 113.


Power Tools Amps: 9.6 A
PPE Standards: CSA Certified
Blower Motor HP: 3/4
Blower CFM: 2849
Blower M3 per Hour: 4840
Blower M3 per Min: 81
Blower CFM 1 Bend Duct: 2290
Blower M3 per Hour 1 Bend Duct: 3891
Blower CFM 2 Bend Duct: 1951
Blower M3 per Hour 2 Bend Duct: 3315
Blower Electrical Current: 115V/208V-230V AC, 60 Hz
Blower Duct: 15'/4.5m
Blower Configuration: EX
Blower Housing: Polyethylene
Blower Design: Axial
Blower Phase: Single
Fit for Hazardous Locations: Yes
Blower Respiratory EU 220V: No
Outdoor Rated: N/A
Port Size: 16"
