Adjustable Length Lifting Beam with Swivel Hook Bottoms

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow for increased visibility.
  • ALL Lifting Beams proof loaded and shipped with certification paperwork.
  • Durable construction ideally suited to jobsite or warehouse use.
  • Quick and easy adjustment of unbalanced loads.
  • Ideally suited to low headroom applications.
  • Standard with hooks.
  • Made in U.S.A.
  • Custom designs available - call for engineering.
  • ALL lifting equipment individually proof loaded per OSHA requirements.

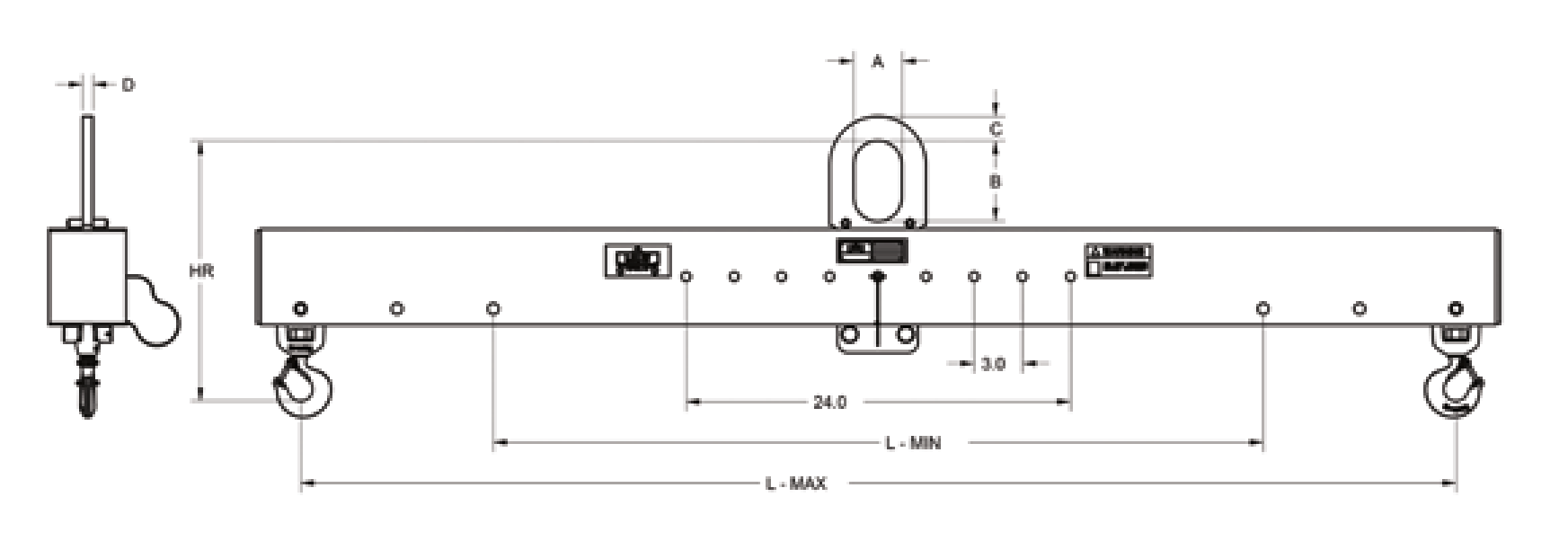

  • All dimensions in inches unless otherwise noted.
WLL MPN L min L max A B C D Headroom (in) Weight (lbs) Price Quantity
2,000 16410 48 72 3 5 0.75 0.63 13.8 85 $2,151.93
2,000 16411 120 144 3 5 0.75 0.63 15.7 285 $2,689.91
4,000 16412 48 72 3 5 1.5 0.63 14.6 135 $2,331.25
4,000 16413 120 144 3 5 1.5 0.63 16.6 330 $3,283.07
6,000 16414 48 72 3 5 1.5 0.63 16.2 160 $2,427.81
6,000 16415 120 144 3 5 1.5 0.63 19.1 530 $3,807.25
8,000 16416 48 72 4 7 2 0.75 18.9 200 $3,283.07
8,000 16417 120 144 4 7 2 0.75 20.9 540 $4,069.35
10,000 16418 48 72 4 7 2 0.75 21.2 300 $3,807.25
10,000 16419 120 144 4 7 2 0.75 22.2 795 $4,938.39
15,000 16420 48 72 4 7 2 1.0 22.1 315 $4,027.96
15,000 16421 120 144 4 7 2 1.0 25.1 815 $5,559.14
