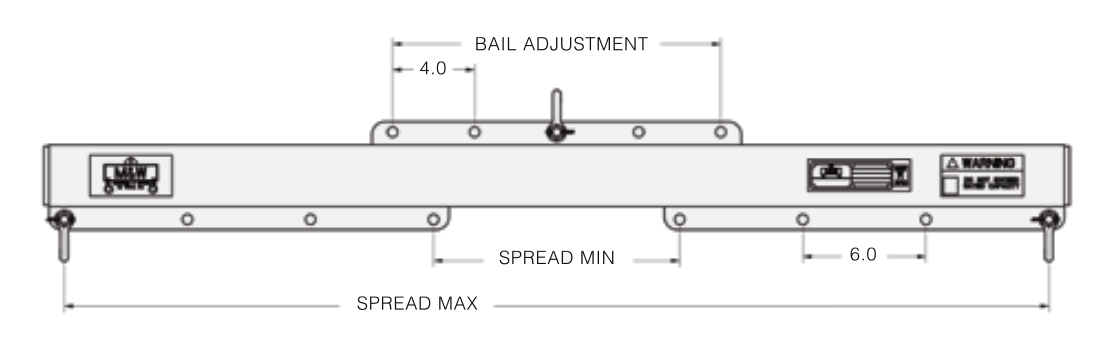

Adjustable Economy Lifting Beam

  • Manufactured to exceed all ASME B30.20 and OSHA regulations.
  • Painted safety yellow for increased visibility.
  • ALL Lifting Beams proof loaded and shipped with certification paperwork.
  • Durable construction ideally suited to jobsite or warehouse use.
  • Quick and easy adjustment of unbalanced loads.
  • Ideally suited to low headroom applications.
  • Shackle bottoms standard for rigging connections.
  • Swivel hooks, eye hooks and custom connections available - call for ordering assistance.
  • Made in U.S.A.
  • Custom designs available - call for engineering.
  • ALL lifting equipment individually proof loaded per OSHA requirements.
  • Beams supplied standard with shackle connections.
WLL MPN Max Spread Min Spread Bail Adj Headroom (In.) Weight (lbs) Top Shackle Size Bottom Size Price Quantity
500 13855 48 12 24 8.07 51 3/8” 3/8” $1,379.44
500 13862 72 36 24 8.07 66 3/8” 3/8” $1,448.41
500 13866 96 60 24 8.07 80 3/8” 3/8” $1,489.79
1,000 13878 48 12 24 8.07 51 3/8” 3/8” $1,393.23
1,000 13879 72 36 24 8.07 66 3/8” 3/8” $1,489.79
1,000 13869 96 60 24 9.07 100 3/8” 3/8” $1,600.15
2,000 13880 48 12 24 9.07 62 3/8” 3/8” $1,448.41
2,000 13886 72 36 24 9.07 80 3/8” 3/8” $1,544.97
2,000 13889 96 60 24 10.07 150 3/8” 3/8” $1,820.86
2,000 13893 120 84 24 10.07 180 3/8” 3/8” $1,958.80
4,000 13924 48 12 24 10.23 72 1/2” 7/16” $1,627.74
4,000 13933 72 36 24 10.48 130 1/2” 7/16” $1,931.22
4,000 13938 96 60 24 12.23 247 1/2” 7/16” $2,372.64
4,000 14130 120 84 24 12.23 302 1/2” 7/16” $2,496.79
8,000 14134 72 12 32 15.77 212 3/4” 5/8” $2,565.76
8,000 14150 96 48 32 16.77 318 3/4” 5/8” $2,827.85
8,000 14154 120 72 32 16.77 476 3/4” 5/8” $3,283.07
10,000 14159 96 36 32 16.77 400 3/4” 5/8” $3,048.56
10,000 14162 120 60 32 17.77 502 3/4” 5/8” $4,110.73
10,000 14167 144 84 32 18.77 710 3/4” 5/8” $4,745.27
14,000 14171 120 48 32 19.69 655 7/8” 3/4” $5,200.49
14,000 14177 144 72 32 21.68 765 7/8” 3/4” $5,655.70
14,000 14182 168 96 32 21.68 1005 7/8” 3/4” $6,331.63
20,000 21449 120 48 32 25.62 875 1 1/4” 7/8” $6,842.02
20,000 21450 144 72 32 28.62 1100 1 1/4” 7/8” $7,269.65
20,000 21451 168 96 32 28.62 1235 1 1/4” 7/8” $7,890.39
